Features

Designed to work with the CinemaPro and other high performance motion control heads
Extremely rigid, large cross-section telescoping boom section weighs only 100lbs, reaches heights to 28', and is conservatively rated for 100 lbs payload at the top
Proprietary constant-level floating control bar allows operator to keep hands at a comfortable level at any crane elevation (no reaching way down or way up)

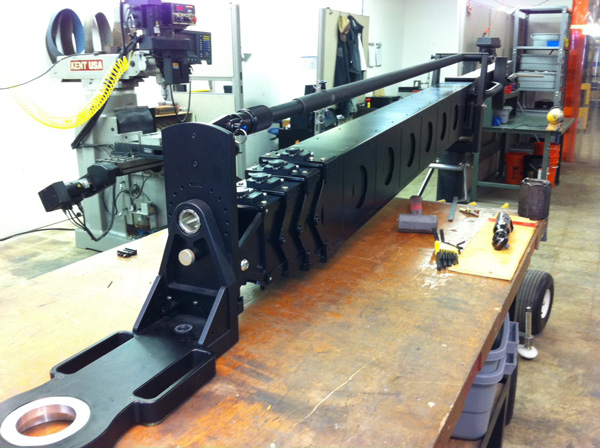

Unique camera platform design allows operator to switch from overslung to underslung with no dismounting or setup changes - simply rotate the platform 180 degrees and lock in place
Manual telescoping boom operates at 4 different lengths, extends and collapses with no tools
Entire system fits in the bed of a pickup or van and sets up in 25 minutes or less.

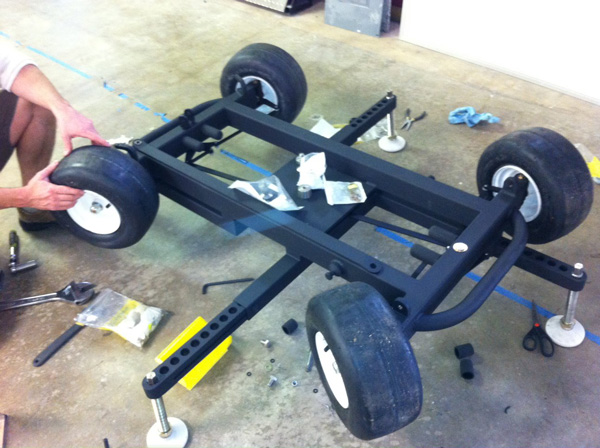

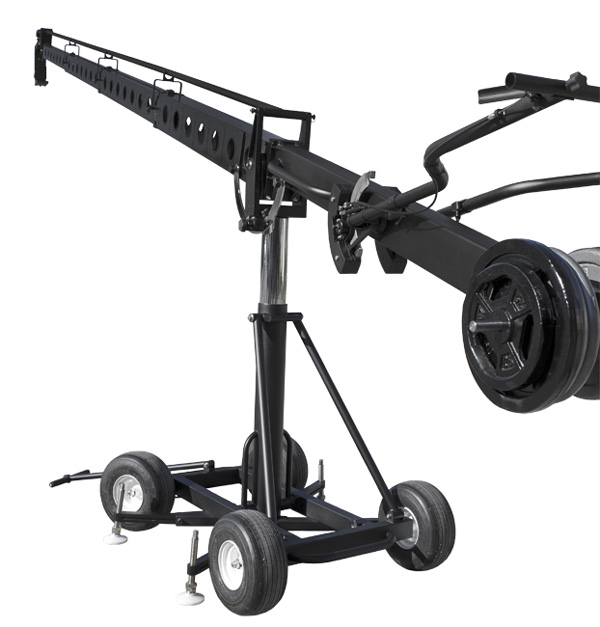

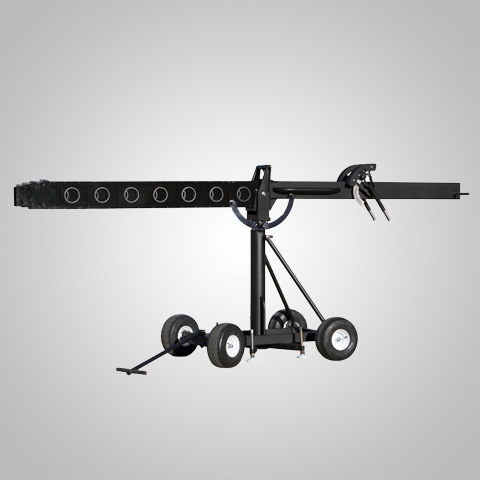

Large footprint 4-wheel-steering dolly with outriggers for absolute stability and maneuverability

Specifications

Boom Type	Manual Telescoping, locks into 4 different extension lengths
Boom Construction	Riveted & Bonded, Powder Coated Thin-Wall Steel
Cabling Accomodation	Cables may run internally along entire crane
Boom Section Max/Min Length	24' / 6' 9"
Boom max cross section	6" x 9"
Boom Section Weight	100 lbs.
Fulcrum to Lens Distance	25' 6"
Max Elevation (w/remote head)	28'
Tail Type	Single-section Claw-Engaging w/ Pivoting Control Handlebar
Tail Construction	Welded Powder-Coated Steel
Tail Section Length	6'
Tail Section Weight	80 lbs.

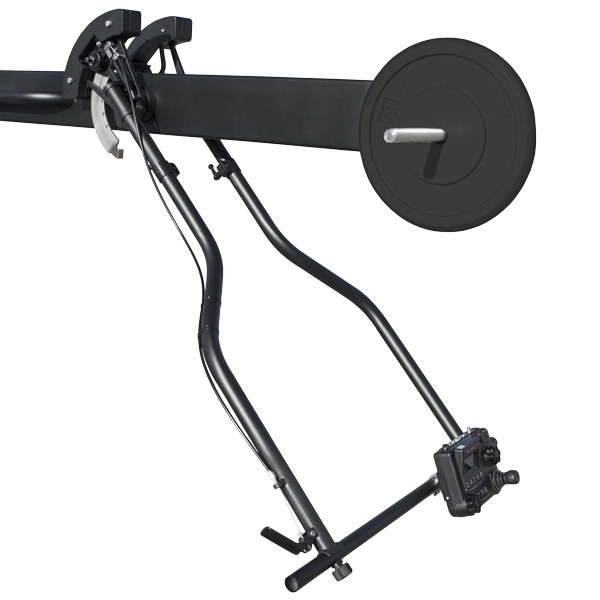

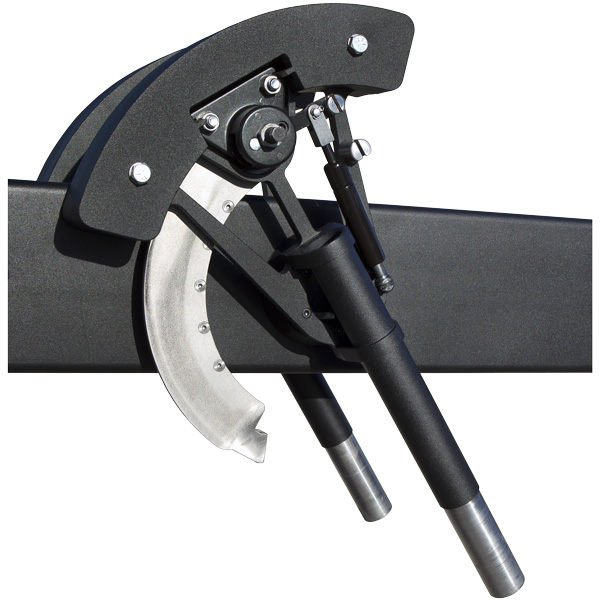

Tail Section Control Handlebar	Counterweighted Infinitely Variable Position w/ Soft Braking Position Hold

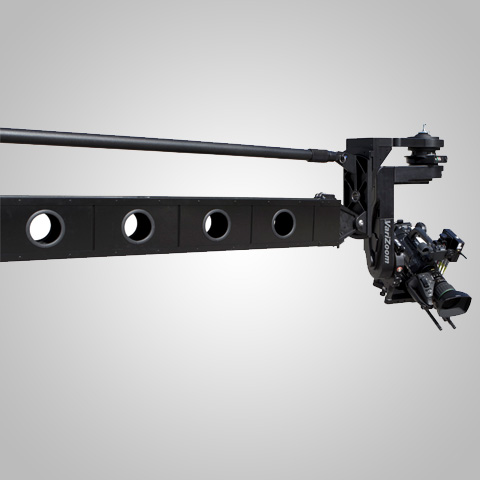

Camera Platform Type	Inverting Overslung/Underslung, 2-axis Leveling w/ dual Mitchell / 100mm Mount
Camera Platform Construction	Anodized Aluminum, Hollow Core
Camera Platform Over/Under Max Elevation Change	4'

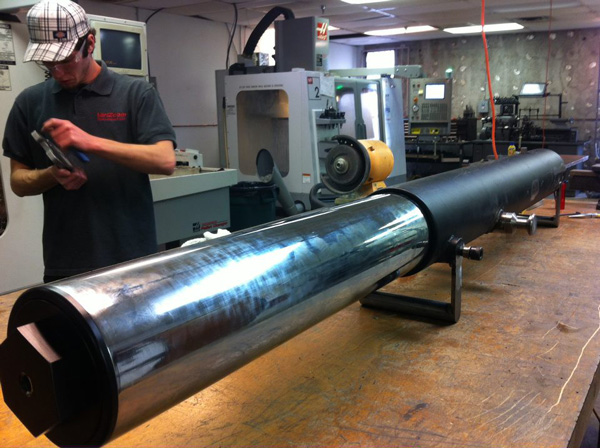

Pedestal Type	4-wheel w/ outriggers and telescoping column

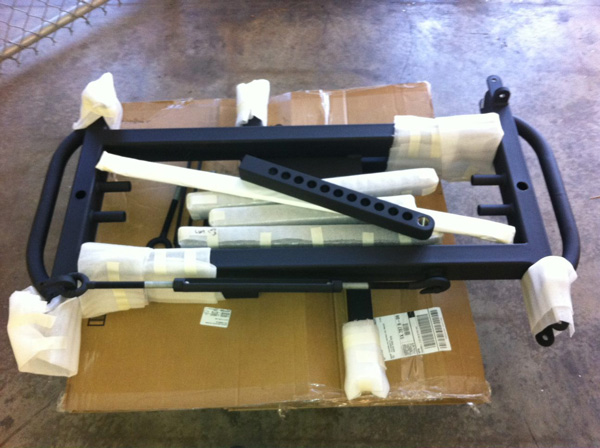

Pedestal Construction	Welded Powder-Coated Steel Frame, Chrome-Plated Steel Column

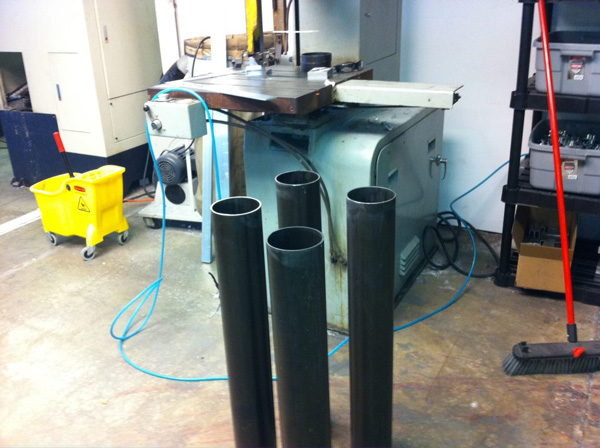

Pedestal Column Telescoping Range	18"
Pedestal Weight	180 lbs.
System Capacity	100 lbs. payload at camera platform
System Counterweight Ratio	4 to 1
System Boom Extensions	6' extension (31' 6" fulcrum to lens / 33' max elevation), load reduced to 75 lbs.
Tools required	Minimal, ratchet for pedestal setup/elevation
