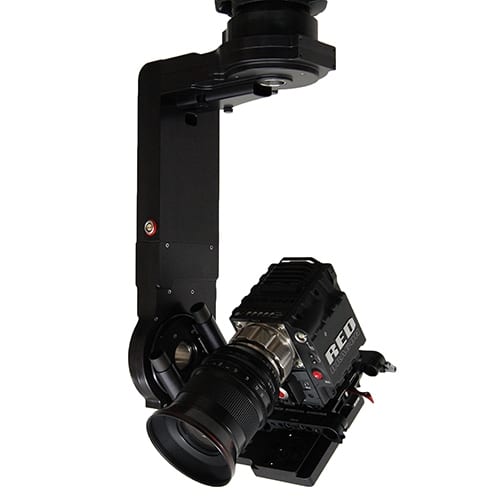

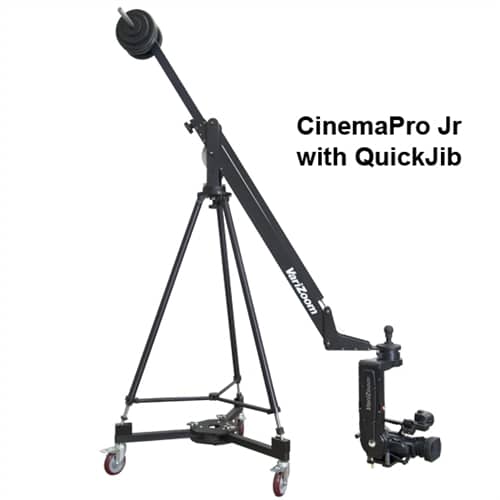

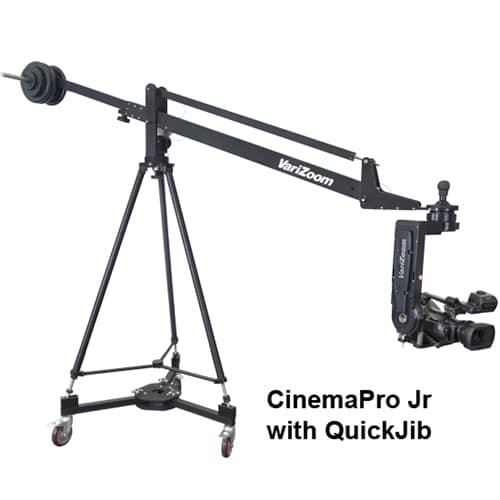

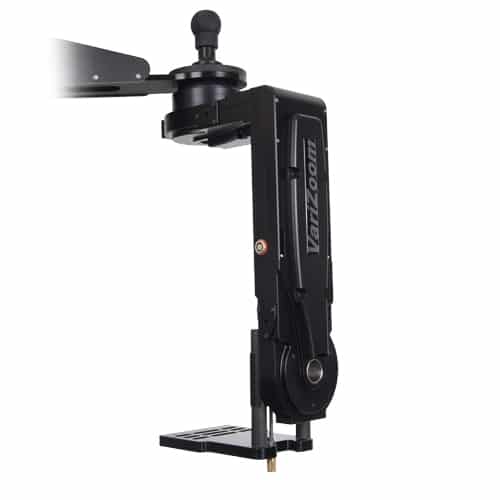

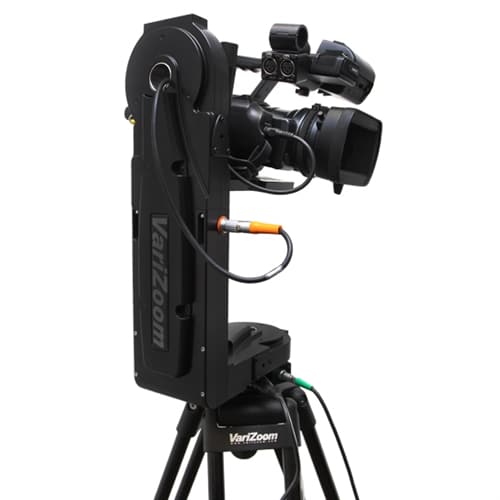

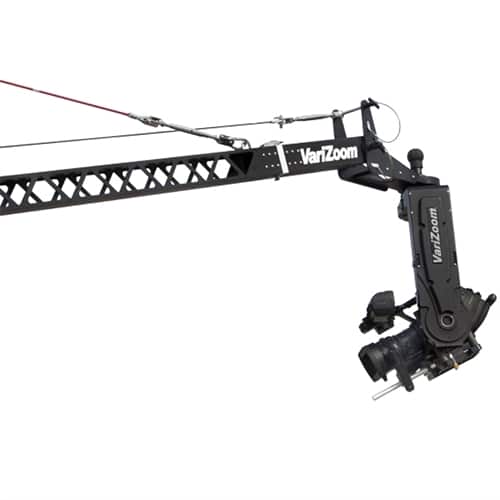

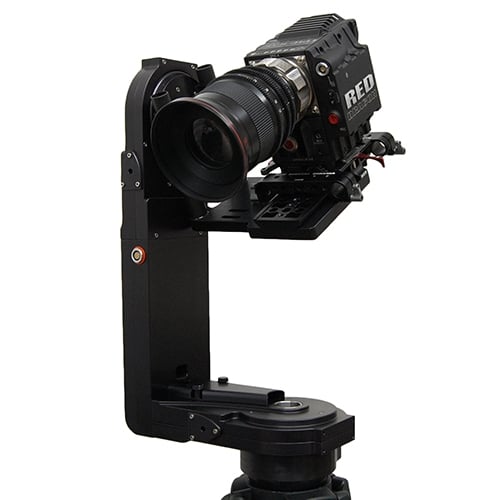

With its menu-driven advanced control console and high performance head design, the Cinema Pro Jr can execute the most dynamic or subtle moves with total precision and playback capability. Pan, tilt, zoom and focus response can be individually customized for the finest control, and the system software can be updated with future releases. The Cinema Pro Jr borrows heavily from the acclaimed Cinema Pro master motion control system, and although it’s scaled down about 35% in most respects, the CP Jr’s baseline performance is remarkably close to that of its big brother. At only 13 pounds, the Cinema Pro Jr is ideal for jib and remote field applications, and its superior programming capability and rock-solid electromechanical performance make it a perfect upgrade for the low-tech heads found on most jib systems.The CP Jr sets up quickly with no twisting wires or tedious balancing process, and it’s capable of extremely precise, repeatable movements at any speed. The CP Jr also performs extremely well as a high speed fixed-mount head or a feature-film quality motion control system for small to mid-scale productions.
Incorporating such high-end features as precision enclosed drivetrain, pan slip ring, recordable/repeatable motion control, built-in zoom/focus control, soft limits, and full parametric motion control settings, the Cinema Pro Jr represents a new standard for lightweight, cost-effective pan & tilt motion control heads. Adding to its appeal is the seamless upgrade path, multiple control input options, and compatibility with an array of existing Cinema Pro accessories. The Cinema Pro Jr is precision-made yet rugged and becoming the logical and affordable choice for a much broader scope of users than any head on the market. Cost effective not only for big budget motion pictures, but for worship facilities, sports, concerts, newsrooms,military,government, and other film, video, and HD applications.
Proudly Made in the USA, the CP Jr is constructed from body sections that are CNC machined from solid billet to exacting standards, so rigidity and structural integrity are second to none. The custom slip rings and robust motor drives are designed and tested intensively to perform flawlessly under the most demanding conditions, and the electronics & software have years of field testing behind them. Add to all this the painstaking assembly and QC done in our state-of-the-art facility, and you’ve got a motion control head of the highest caliber.
Give us a call, email, or visit one of our demo/rental showrooms in Southern California, Austin, or New York.
Zoom and Focus Control Built into Head – VZCP-C09 lens cable required, not included

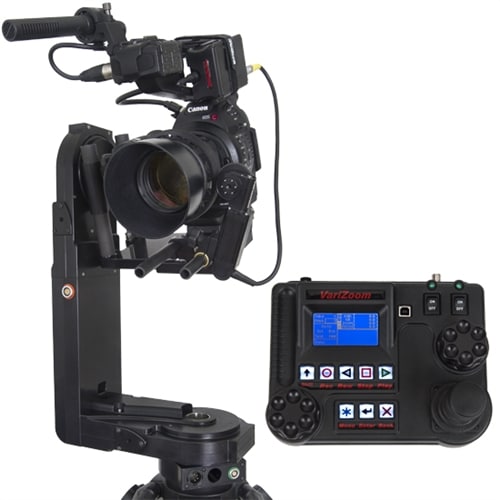

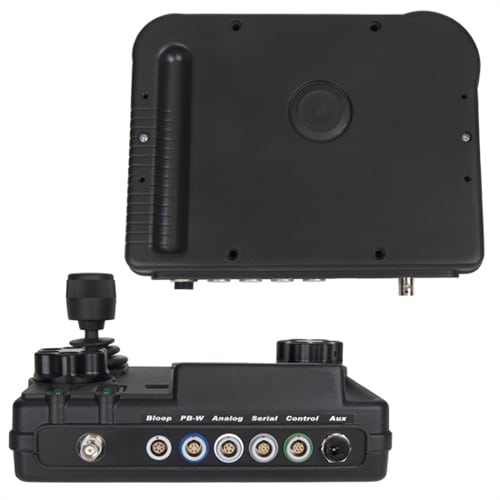

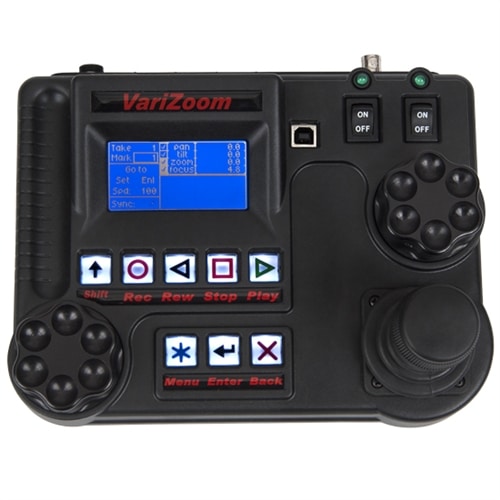

Console Joystick control for Pan, Tilt and Zoom; knob control for Focus
Move between 2000 precise marks with variable speed/motion curves
Record and playback 2000 moves up to 1hr
Independently Programmable Max Speed for Pan & Tilt
Independently Programmable Smoothing for Pan & Tilt
Precise, Resettable Zero Point for Motion Referencing
Up to 2500 feet between controller and head
Custom Soft Limits for Pan and Tilt range of motion
Fujinon, Canon and Preston serial and analog lens control – requires optional VZCP-C09 cable
Dynamic Zoom Compensation

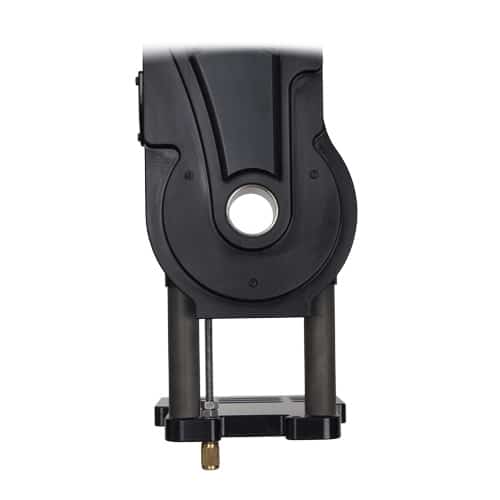

Extremely Rigid Build w/ 100mm or Mitchell Mount

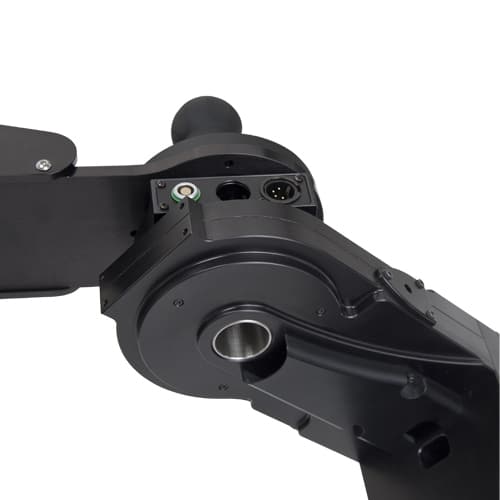

Pan-base slip-ring for continuous 360° motion
Power pass-thru for camera – VZCP-C10 power cable required, not included
High-power Enclosed Drivetrain Allows Dynamic Moves
