VZHDARM

HomeAccessoriesLegacy ProductsVZHDARM

VZHDARM

$149.00

Heavy Duty Articulated Arm

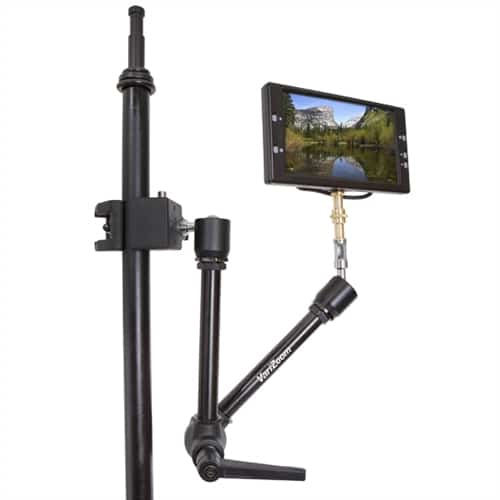

The new Heavy Duty (HD) Single-Locking Articulated Arm is a really versatile and exciting addition to our line of support accessories. Perfect for mounting monitors or small lights and capable of easily holding 5 pounds, the HD Arm also boasts a slick locking mechanism that allows you to loosen all three joints with a single lever. The system includes a reversible brass mounting stud with 1/4″-20 and 3/8″-16 ends and our universal clamp for mounting to bars or flat surfaces. This monitor mount arm is robust, easy to use, and incredibly helpful in video, photo, and film applications.

See availability in Demo Bargains

Category: Legacy Products SKU:VZHDARM Availability: Out Of Stock
  • Description
  • Specifications
  • Product Support
  • Reviews (0)

Description

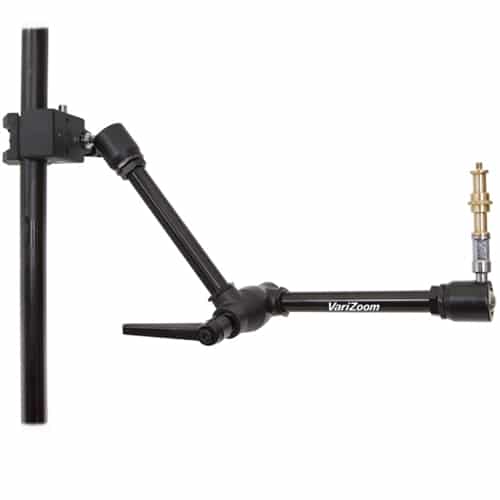

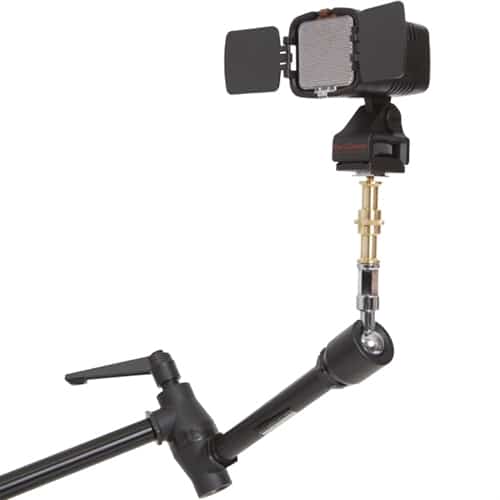

Built for professional applications, this heavy duty articulated monitor arm has rugged construction, simple operation, and high load capacity. Adjustable to virtually any angle, the HD Arm’s single-lock mechanism allows you to quickly reposition and fix all three joints with one handle. This single-lock mechanism incorporates a positive-lock serrated clutch and an oversize adjustable handle for high leverage, so you never have to worry about the arm slipping. The monitor mount arm readily supports small field monitors, lights, and microphones up to 5 pounds.

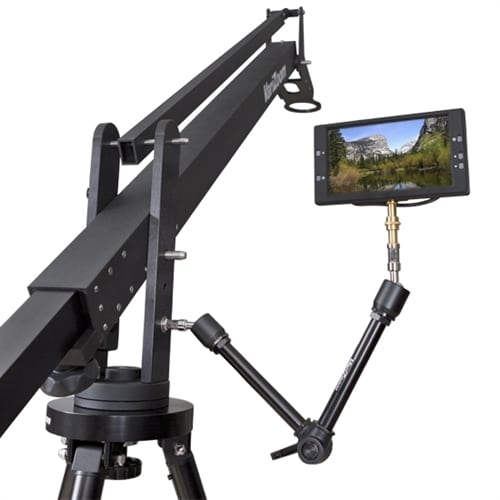

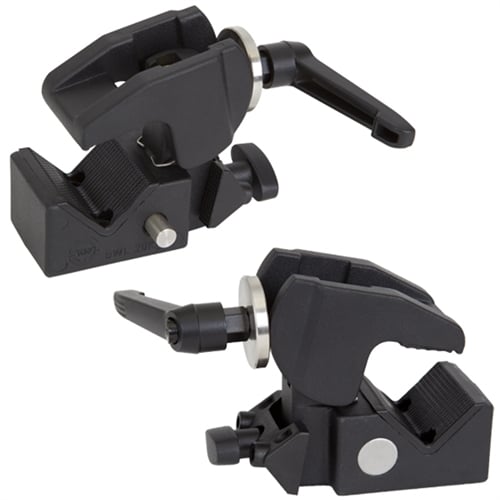

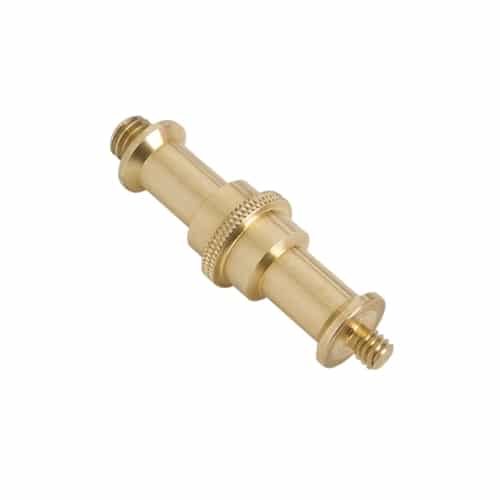

Included with this package is a reversible 1/4″-20 to 3/8″-16 brass mounting stud (the arm has 1/4″-20 socket on one end and 3/8″-16 on the other end), our universal clamp that mounts to tubes or flat surfaces, 1/4″-20 stud w/ washer, and 3/8″-16 stud w/ washer. The articulated monitor arm can also be directly mounted to the newest series of SnapCrane and QuickJib at the pivot base or any other drilled surface using the internally threaded end sockets.

Additional information

Weight 6 lbs
Dimensions 12 × 9 × 9 in
UPC

877038004504

Max/Min Clamping Range

2.17" / 0.5" Round; 1.25" / 0.2" Flat

Arm Extended Dimensions

26" x 6" x 3"

Arm Folded Dimensions

9.5" x 6" x 3"

Weight

3.5 lbs.

Construction

Aluminum, Steel & Brass

Threaded Holes

1/4"-20 and 3/8"-16 in arm end fittings; 10-32 & 1/4"-20 in universal clamp

Threaded Hardware Included

Reversible 1/4"-20 & 3/8"-16 Brass Stud; 1/4"-20 stud w/ large OD washer; 3/8"-16 stud w/ large OD washer

Capacity

5 lbs extended, 8 lbs folded over center
