VZM5

HomeAccessoriesLegacy ProductsVZM5

VZM5

$199.00

5″ HDMI LCD Monitor

The VZ-M5 5″ HDMI monitor provides sharp, accurate images for improved framing and focus assist on any camera equipped with an HDMI output. Utilizing top-quality Grade A+ LCD panels and image processing, the LCD monitors for sale offer picture quality and a feature set normally found only on more expensive monitors. Included with the basic M5 kit: monitor, 2 HDMI cables (standard-standard & standard-mini), and AC power adapter. A number of optional accessories designed specifically for the M5 are available through VariZoom.

Category: Legacy Products SKU:VZM5 Availability: Out Of Stock
  • Description
  • Specifications
  • Product Support
  • Reviews (0)

Description

VariZoom 5″ HDMI LCD Monitor.

The VZ-M5 HDMI monitor provides sharp, accurate images for improved framing and focus assist on any camera equipped with an HDMI output. Utilizing top-quality Grade A+ LCD panels and image processing, the VariZoom VZM5 offers picture quality and a feature set normally found only on more expensive monitors. Included with the basic M5 kit: monitor, 2 HDMI cables (standard-standard & standard-mini), and AC power adapter. A number of optional accessories designed specifically for the M5 are available through VariZoom.

  • 5″ HDMI monitor accepts all HD signals up to 1080p
  • HDMI In / Out (loop through)
  • DSLR Scaling to allow full-screen viewing of image from cameras such as Canon 5D
  • Auto Aspect Ratio Detection
  • Monochrome (B&W) mode
  • Image Flip for inverted mounting (1/4”-20 mounts on top and bottom of monitor)
  • Safety Area markers (5 levels), Centerline Marker, 4:3 area markers
  • Underscan and Overscan modes
  • Color Temperature Presets (D65 and D93 standards), or user-defined through RGB settings
  • Brightness, Contrast, Saturation, Sharpness adjustments
  • Customizable Menu Options for menu duration, position, text color and language
  • Headphone jack for audio monitoring
  • Pixel-to-Pixel Zoom and Peaking for Focus Assist with OPTIONAL VZMZB Remote

Additional information

Weight 3 lbs
Dimensions 12 × 9 × 9 in
Includes

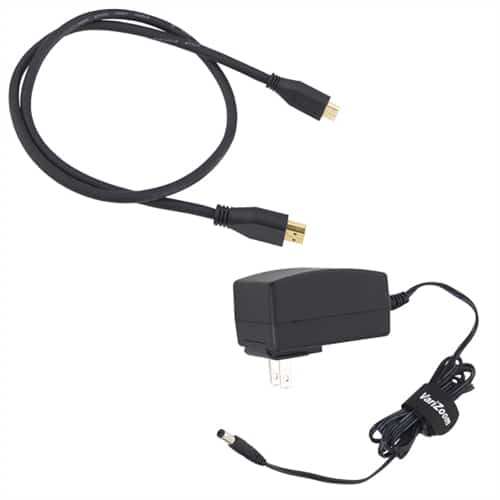

Monitor, power supply and 2 HDMI cables (standard-standard & standard-mini)

UPC

877038005280

Screen Size

4-7/8” diagonal

HDCP Compliant

YES

Native Resolution

800 x 480

Brightness

500 cd/m2

Contrast

800:01:00

Backlight type

LED

Video Formats

1080 – 24p/24psf/25p/30p/50i/60i/50p/60p; 720 – 50p/60p; 480i; 480p; 576i; 576p

Response Time

10ms

Viewing Angle

L80° / R80° / U80° / D80°

Input Voltage

12VDC nominal (6.5 – 36VDC max range)

Mount Type

¼”-20 female (2) top and bottom

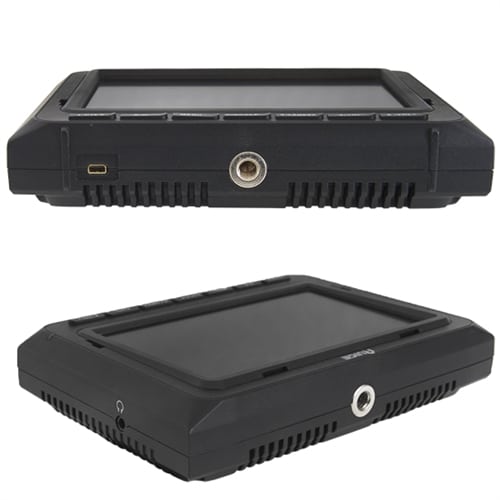

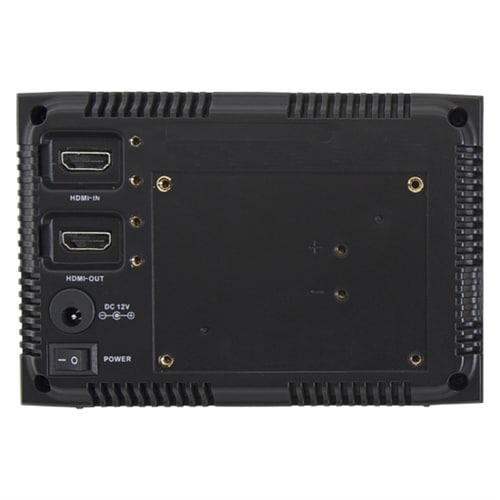

Inputs/Outputs

HDMI (in), HDMI (out), Headphone 3.5mm (out), “Zoom” (in) 3.5mm

Size

5.8” x 3.96” x 1.22”

Weight

0.74 lb

Power consumption

≤ 7.5W

Optional accessories (not included)

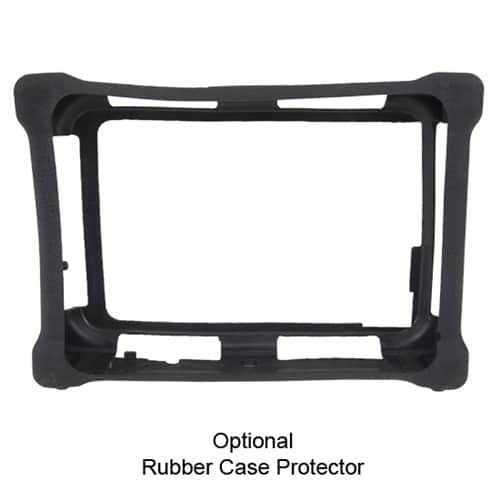

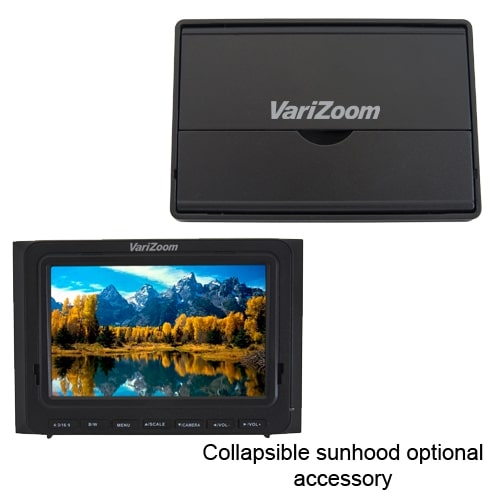

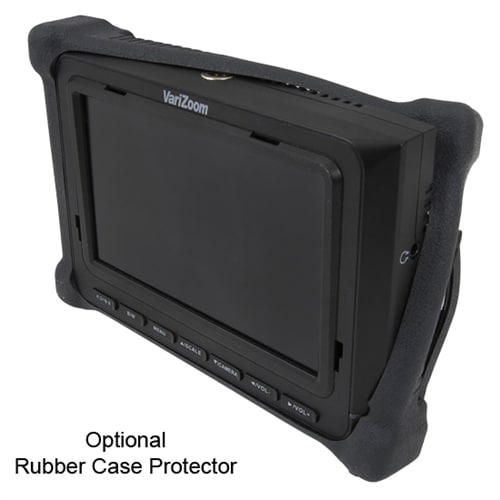

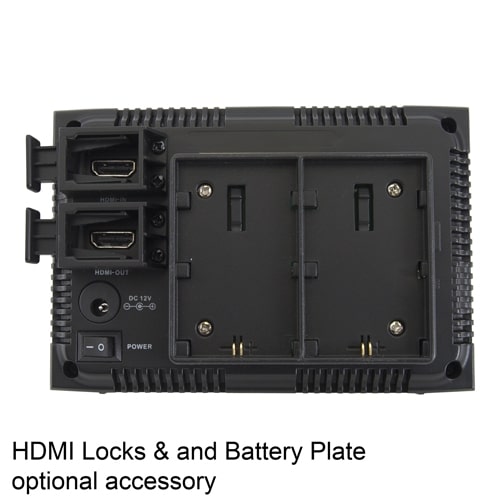

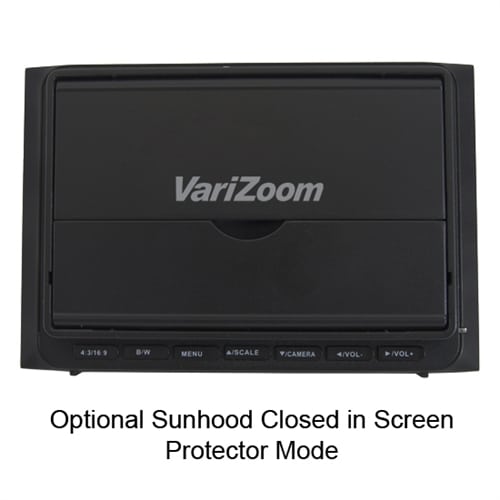

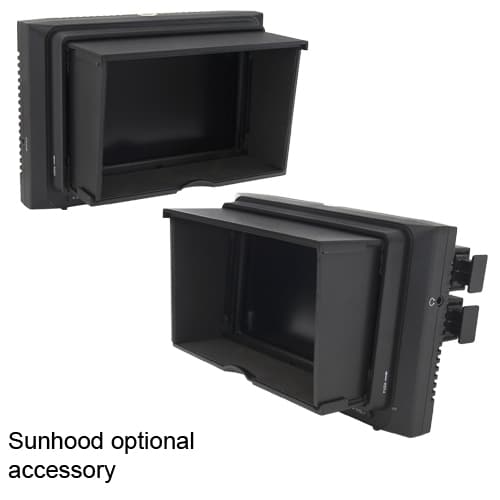

Sunhood, battery plates, HDMI locks, rubber case protector, carrying case

Warranty

1 year (does not cover screen damage)
