VZM7

HomeAccessoriesLegacy ProductsVZM7

VZM7

$279.00

7″ HDMI LCD Monitor

The VZ-M7 HDMI monitor provides sharp, accurate images for improved framing and focus assist on any camera equipped with an HDMI output. Utilizing top-quality Grade A+ LCD panels and image processing, the M7 offers picture quality and a feature set normally found only on more expensive monitors. Included with the basic M7 kit: monitor, 2 HDMI cables (standard-standard & standard-mini), and AC power adapter. A number of optional accessories designed specifically for the M7 are available through VariZoom.

Category: Legacy Products SKU:VZM7 Availability: Out Of Stock
  • Description
  • Specifications
  • Product Support
  • Reviews (0)

Description

VariZoom 7″ HDMI Monitor.

The VariZoom VZM7, 7-inch LCD monitor for video cameras provides sharp, accurate images for improved framing and focus assist on any camera equipped with an HDMI output. See below: (Unboxing M7 monitor) Utilizing top-quality Grade A+ LCD panels and image processing, the M7 offers picture quality and a feature set normally found only on more expensive monitors. Included with the basic M7 kit: monitor, 2 HDMI cables (standard-standard & standard-mini), and AC power adapter. A number of optional accessories designed specifically for the M7 are available through VariZoom.

  • This 7-inch LCD monitor for video cameras accepts all HD signals up to 1080p
  • HDMI In / Out (loop through)
  • DSLR Scaling to allow full-screen viewing of image from cameras such as Canon 5D
  • Auto Aspect Ratio Detection
  • Monochrome (B&W) mode
  • Image Flip for inverted mounting
  • Safety Area markers (5 levels), Centerline Marker, 4:3 area markers
  • Underscan and Overscan modes
  • Color Temperature Presets (D65 and D93 standards), or user-defined through RGB settings
  • Brightness, Contrast, Saturation, Sharpness adjustments
  • Customizable Menu Options for menu duration, position, text color and language
  • Speaker and Headphone jack for audio monitoring
  • Pixel-to-Pixel Zoom and Peaking for Focus Assist with OPTIONAL VZMZB Remote

Unboxing M7 monitor

Additional information

Weight 4 lbs
Dimensions 13 × 13 × 5 in
Includes

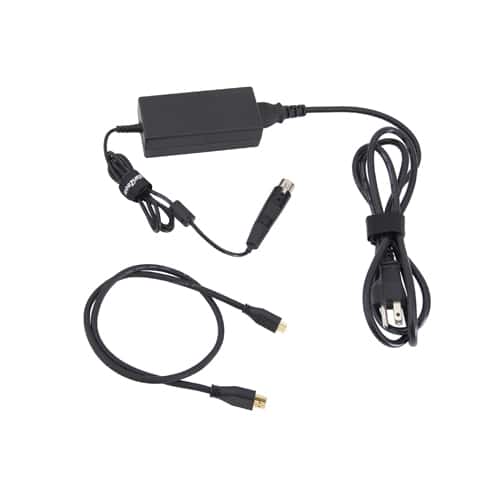

Monitor, power supply and 2 HDMI cables (standard-standard & standard-mini)

UPC

877038005297

Screen Size

7” diagonal

HDCP Compliant

YES

Native Resolution

1024 x 600

Brightness

250 cd/m2

Contrast

700:01:00

Backlight Type

LED

Video Formats

1080 – 24p/24psf/25p/30p/50i/60i/50p/60p; 720 – 50p/60p; 480i; 480p; 576i; 576p

Response Time

10ms

Viewing Angle

L75° / R75° / U70° / D75°

Input Voltage

12VDC nominal (6.5 – 36VDC max range)

Mount Type

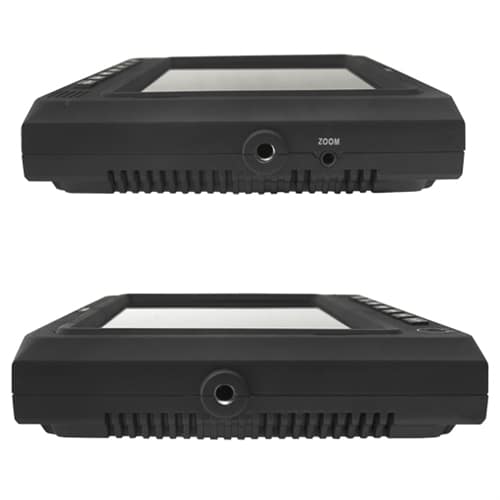

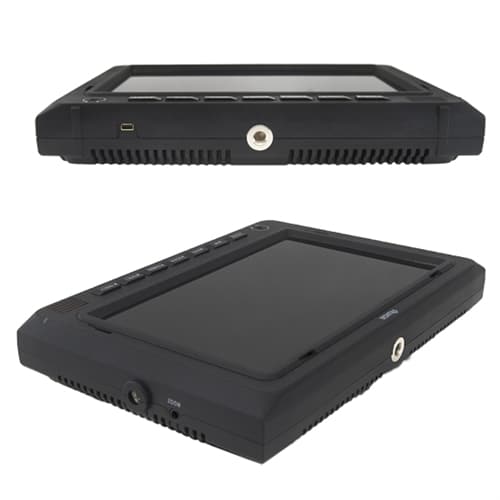

¼”-20 female (2x – top, bottom), M6 female (2x – sides)

Inputs/Outputs

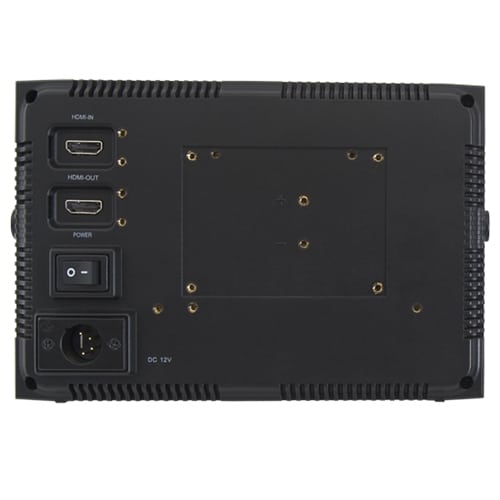

HDMI (in), HDMI (out), Headphone 3.5mm (out), “Zoom” (in) 3.5mm, XLR power (4+, 1-)

Size

8” x 5.4” x 1.5”

Weight

1.25 lbs.

Power consumption

≤ 8W

Optional accessories (not included)

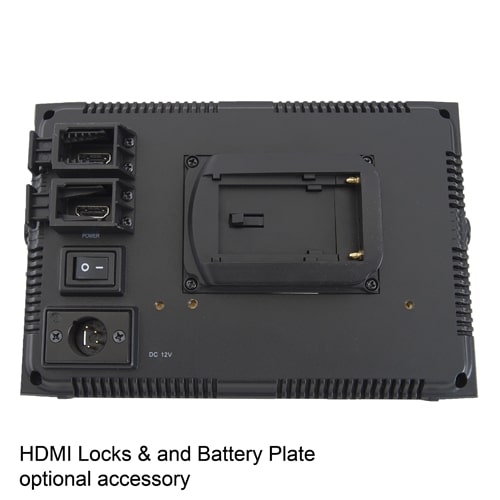

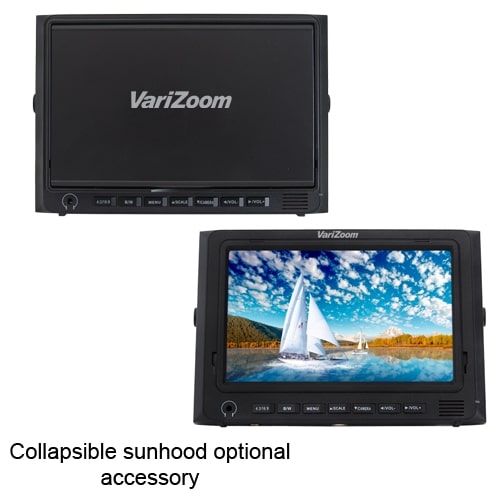

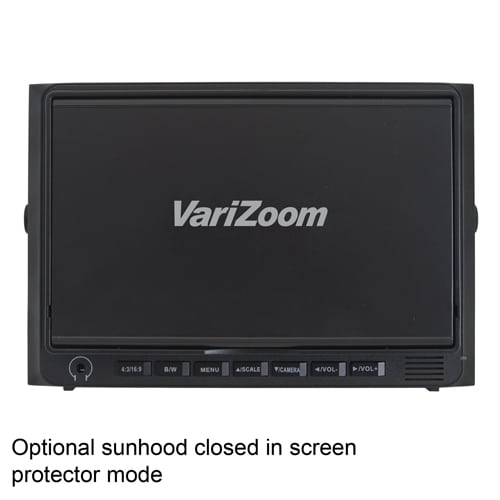

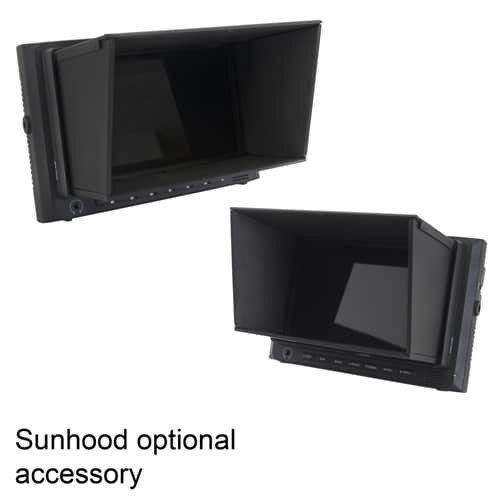

Sunhood, battery plates and HDMI locks

Warranty

1 year (does not cover screen damage)

Product Support

PDF Download Download PDF Manual

512-219-7722
Contact us Online
