VZM7K

HomeAccessoriesLegacy ProductsVZM7K

VZM7K

$499.00

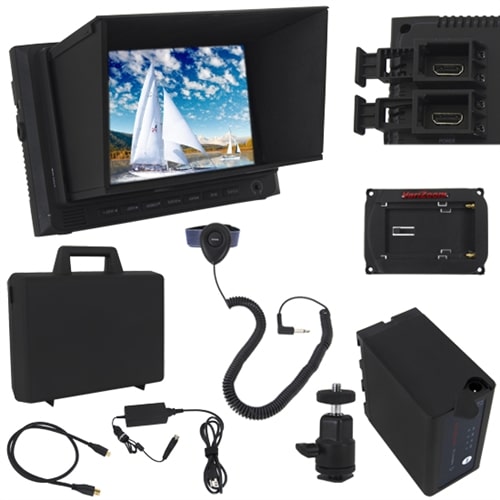

VariZoom VZM7K monitor deluxe kit with sunhood/screen protector, Sony L series battery plate, high-capacity battery (6 hrs), charger, hard carrying case, swivel shoe mount, HDMI cable locks, remote zoom button for focus assist, 2 HDMI cables (standard-standard & standard-mini), AC adapter.

Add this 7” HDMI monitor kit to any zoom/focus kit and save $50 – call to order 512-219-7722

Category: Legacy Products SKU:VZM7K Availability: Out Of Stock
  • Description
  • Specifications
  • Reviews (0)

Description

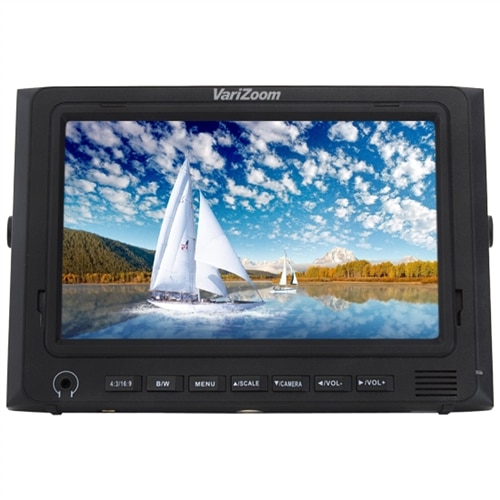

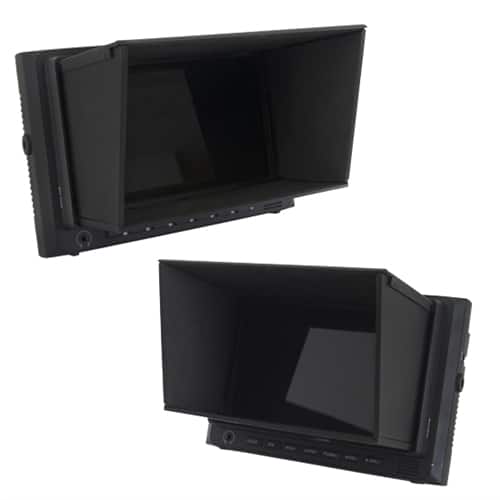

This 7” HDMI monitor kit includes everything you need for monitoring your video productions. Starting with our ultra-sharp VariZoom VZM7K monitor for accurate representation of your video feed, this kit includes accessories and features you won’t find anywhere else. (Unboxing Video below) The collapsible sunhood/screen protector offers a professional look, excellent viewing outdoors, and superior protection during storage & transport. The high-capacity battery system will keep your monitor running for up to 6 hours. Pre-mounted with the kit are a Sony L series battery plate and the extremely handy HDMI locks to prevent the cable from loosening or damaging the monitor connectors should the cable get yanked or bent. Also included are the swivel shoe mount for attaching the monitor to your camera and the foam-lined hard case that holds everything together and protects your investment.

Last but not least is the innovative zoom button that allows you to remotely put the monitor in pixel-to-pixel and peaking modes for extremely accurate focusing.

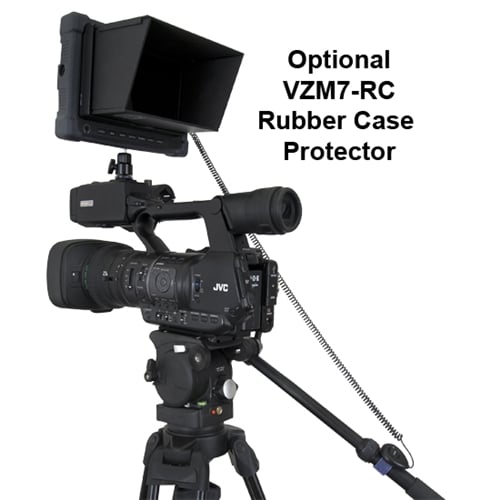

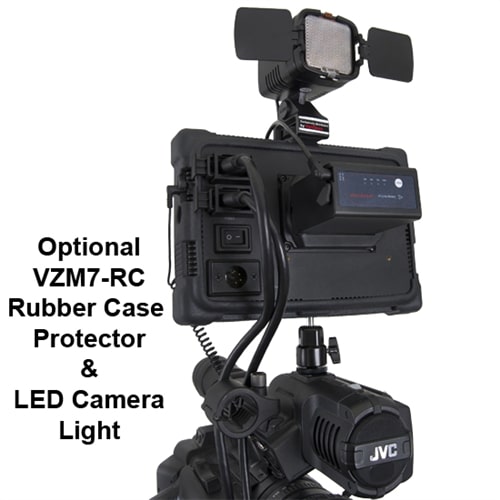

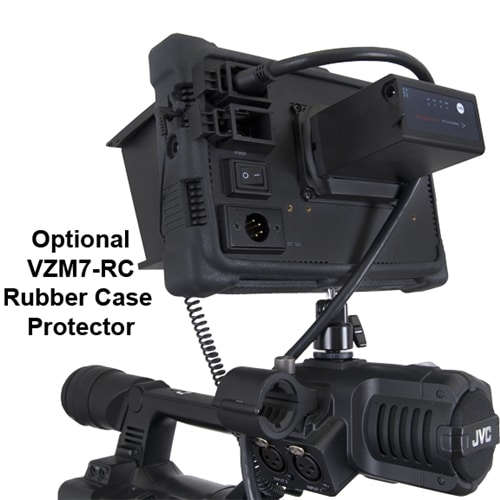

Buy this VariZoom VZM7K kit to save or purchase the accessories a la carte. Don’t forget about our optional VZM7-RC rubber case protector to make your monitor stand up to the rigors of field use.

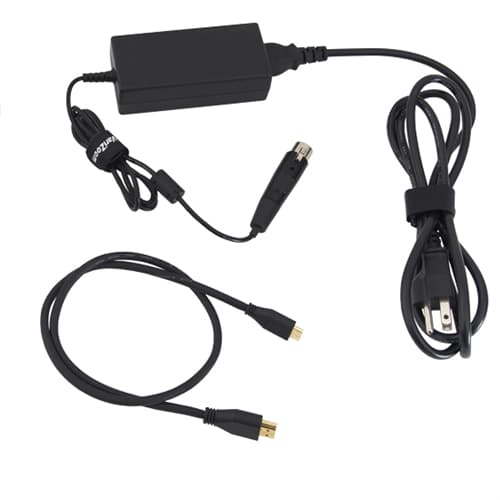

  • VZM7 monitor w/ power supply and 2 HDMI cables (mini-std and std-std)

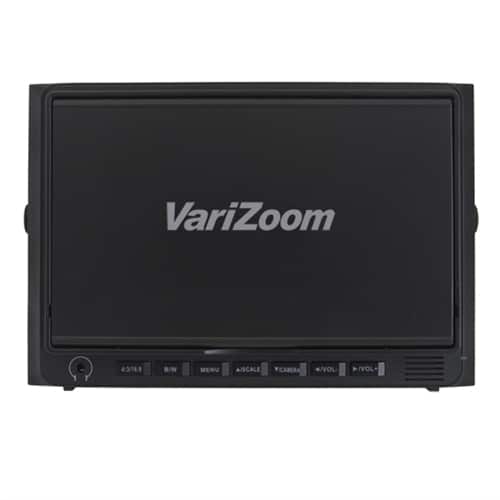

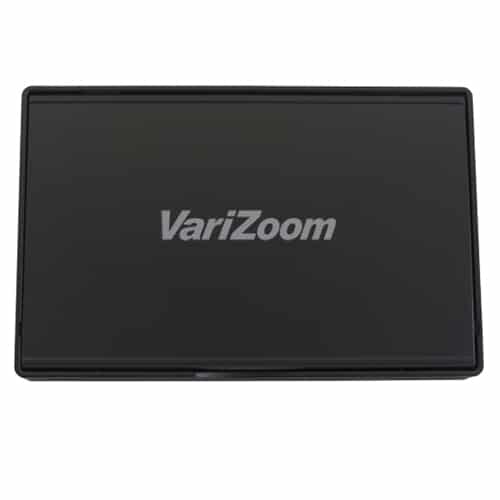

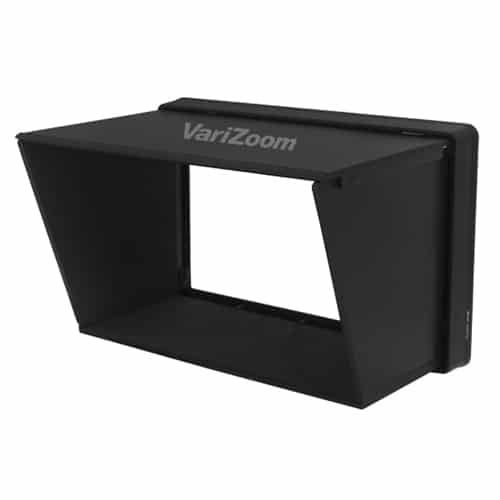

  • Hard Sunhood/Screen Protector

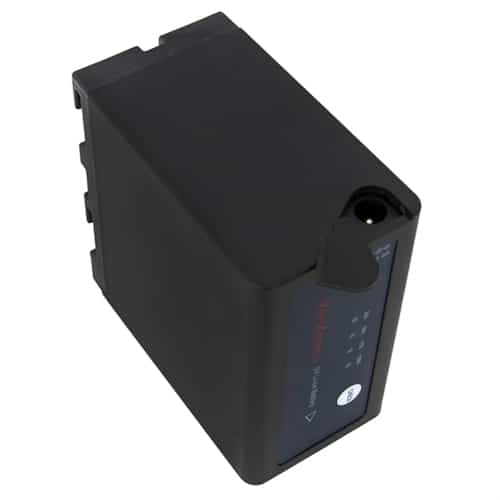

  • High Capacity L Series Battery 47Wh

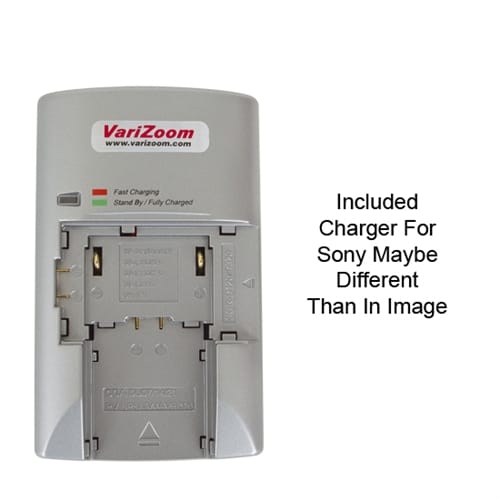

  • Compact Travel Charger

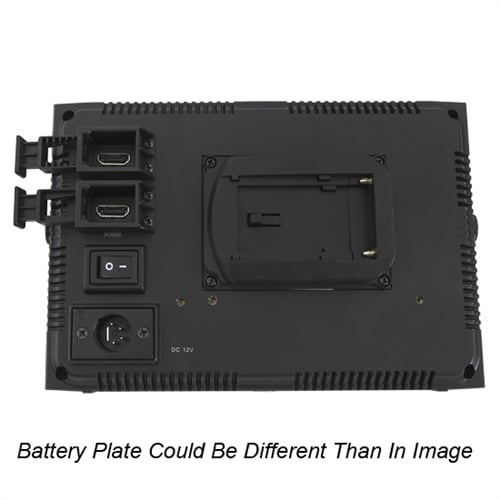

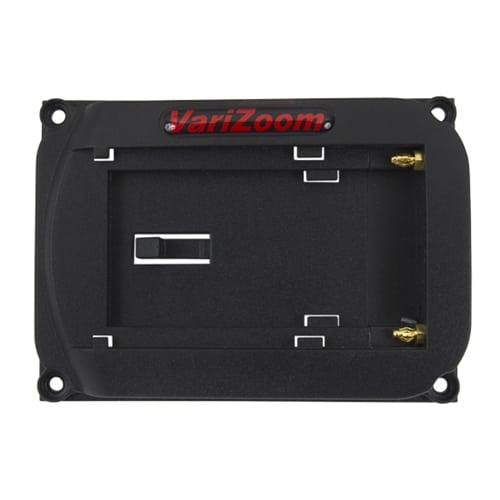

  • Battery Plate Sony L Series (premounted)

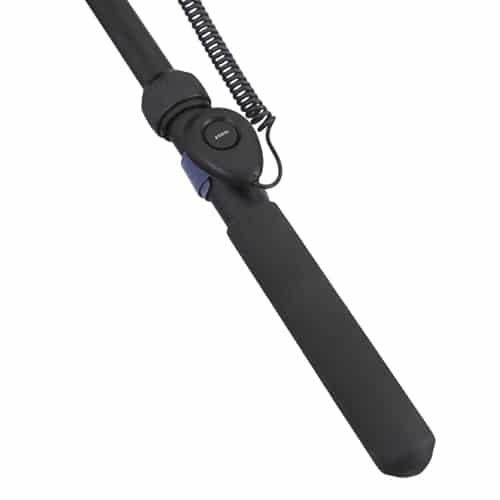

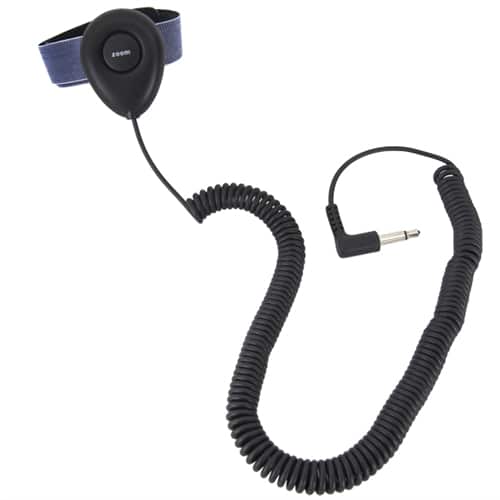

  • Remote Zoom Button for Focus Assist

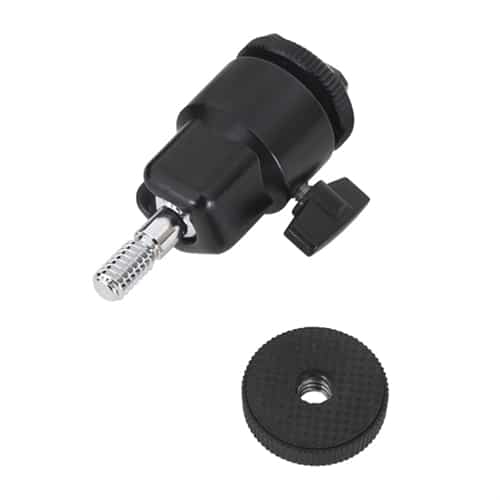

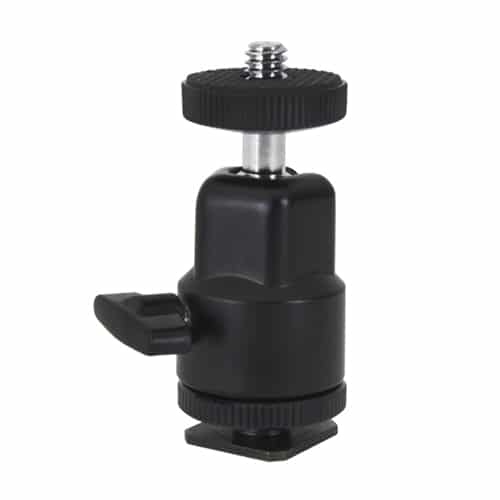

  • Swivel Shoe Mount for camera-top mounting

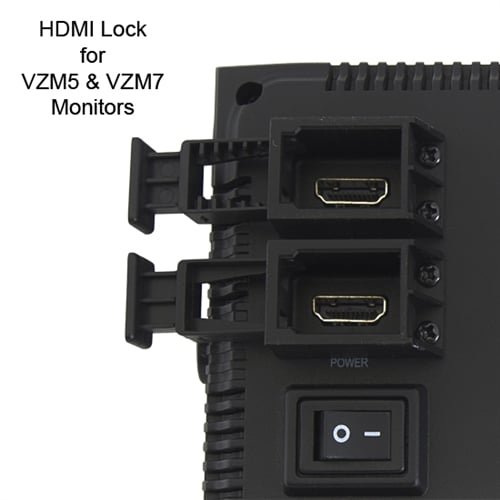

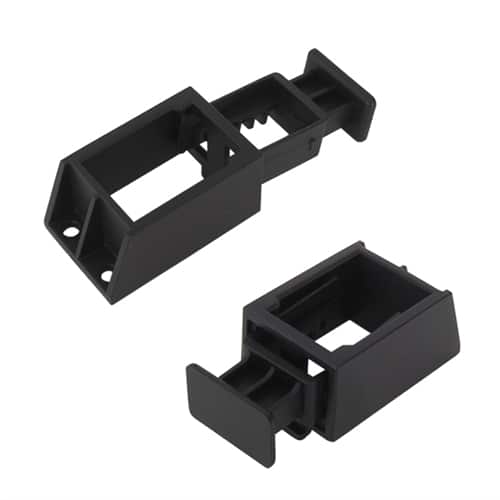

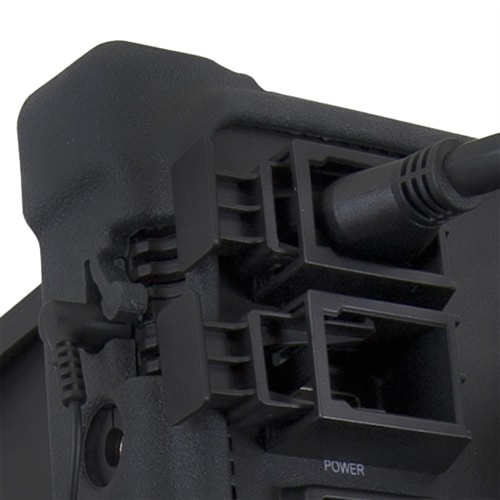

  • 2 HDMI locks for In and Out

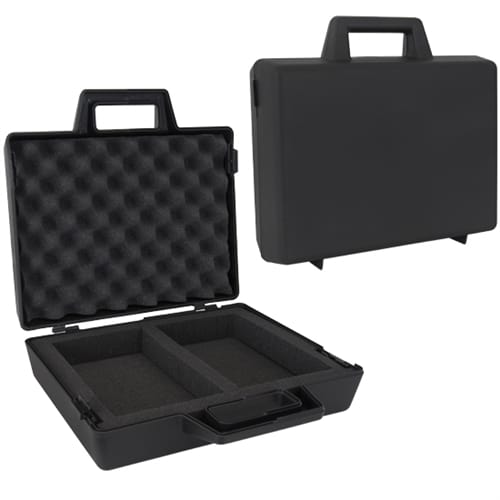

  • Hard Case w/ foam lining





  • Accepts all HD signals up to 1080p
  • HDMI In / Out (loop through)
  • DSLR Scaling to allow full-screen viewing of image from cameras such as Canon 5D
  • Auto Aspect Ratio Detection
  • Monochrome (B&W) mode
  • Image Flip for inverted mounting
  • Safety Area markers (5 levels), Centerline Marker, 4:3 area markers
  • Underscan and Overscan modes
  • Color Temperature Presets (D65 and D93 standards), or user-defined through RGB settings
  • Brightness, Contrast, Saturation, Sharpness adjustments
  • Customizable Menu Options for menu duration, position, text color and language

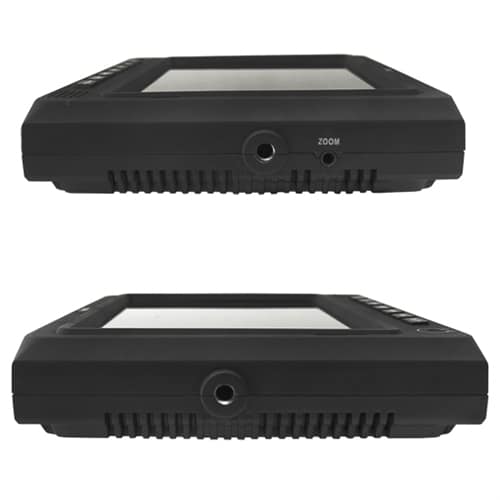

  • Built-In Speaker and Headphone jack for audio monitoring
  • Pixel-to-Pixel Zoom and Peaking for Focus Assist

Unboxing Video below

Additional information

Weight 7 lbs
Dimensions 16 × 14 × 8 in
Includes

Monitor, power supply, 2 HDMI cables (standard-standard & standard-mini), VZM7HD sunhood/screen protector, VZMBPS Sony L series battery plate, high-capacity battery (6hrs), VZMCH charger, VZMZB remote zoom button, VZSHOE swivel shoe mount, VZMLOCK HDMI cable locks (2), VZMCC hard carrying case.

UPC

877038005310

Screen Size

7” diagonal

HDCP Compliant

YES

Native Resolution

1024 x 600

Brightness

250 cd/m2

Contrast

700:01:00

Backlight Type

LED

Video Formats

1080 – 24p/24psf/25p/30p/50i/60i/50p/60p; 720 – 50p/60p; 480i; 480p; 576i; 576p

Response Time

10ms

Viewing Angle

L75° / R75° / U70° / D75°

Input Voltage

12VDC nominal (6.5 – 36VDC max range)

Mount Type

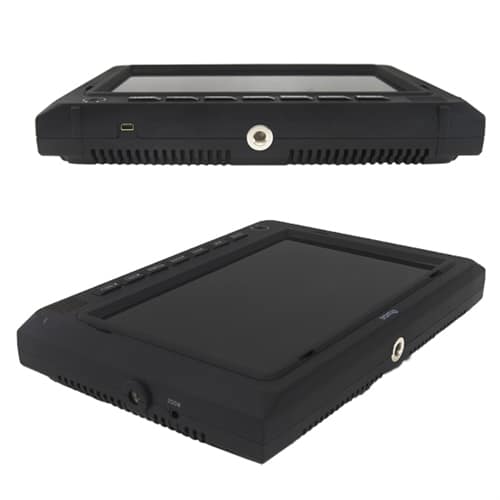

¼”-20 female (2x – top, bottom), M6 female (2x – sides)

Inputs/Outputs

HDMI (in), HDMI (out), Headphone 3.5mm (out), “Zoom” (in) 3.5mm, XLR power (4+, 1-)

Size

8” x 5.4” x 1.5”

Weight

1.25 lbs.

Battery Capacity

47 Wh / 6600 mAh / approx 6hrs runtime

Power consumption

≤ 8W

Warranty

1 year (does not cover screen damage)
