VZTFT7

HomeAccessoriesLegacy ProductsVZTFT7

VZTFT7

$199.00

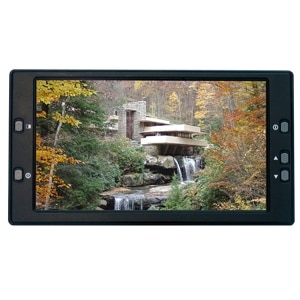

7″ LCD Monitor

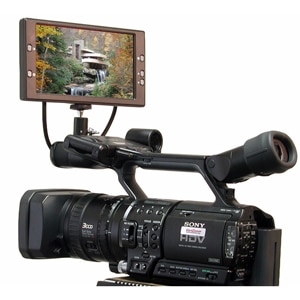

Mount this 7” LCD monitor on top of your camera as a studio-style external viewfinder for a more comfortable shooting approach, or use it as a remote source monitor or playback screen in the field. Switch between 4:3/16:9 with a simple press of a button!

See availability in Demo Bargains

Category: Legacy Products SKU:VZTFT7 Availability: Out Of Stock
  • Description
  • Specifications
  • Product Support
  • Reviews (0)

Description

The VZTFT7 16:9 7″ monitor can be used a variety of ways, most importantly as a large external video display that allows the shooter to step back from the camera rather than standing hunched over while looking through a typically inadequate viewfinder. It can also be used as a lightweight field monitor, remote viewing display, or portable playback screen. This monitor easily switches between 4:3 and 16:9 aspect ratio. When combined with VariZoom lens controls, you have a studio package comparable to much more expensive setups. For the greatest versatility and value, we recommend the VZ-TFT-7U kit that includes all monitor accessories, including battery, shoemount, sunhood and carrying case.

  • Vivid, sharp 7″ color screen in 16:9 aspect ratio
  • NEW – Lower power consumption for double the battery life (4.5W max)
  • Lightweight, compact, rugged design
  • Includes universal AC adapter (100-240VAC input) and 4′ RCA cable
  • Compatible with NTSC and PAL standards (autoswitch)

Additional information

Weight 3 lbs
Dimensions 8 × 6 × 4 in
UPC

877038001947

Video System

NTSC and PAL compatible (autoswitch)

Resolution

1440 x 234 pixels / 480 x 240 lines

Screen Size

7" Diagonal 16:9 AR

Active Area

6.12” w x 3.45” h

Luminosity

250 nit TYP

Viewing Angles

30/60/60/60 (Top/Bottom/L/R)

Picture Adjustments

Color, Brightness, Contrast

Aspect Ratio Modes

Full, Normal

Inputs

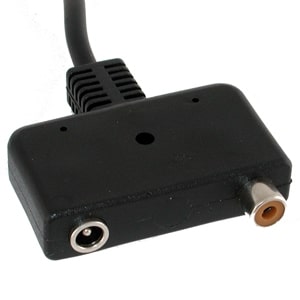

RCA video, 2.1mm DC input (center +)

Video Signal Input

1V p-p (positive) 75 ohm

Power Consumption

4.5W Max @ 10-17VDC

Operating Conditions

32-140F, 85% Max Humidity

Weight

0.84 lb

Dimensions

7.6” w x 4.17” h x 0.98” d

Product Support

[PDF icon] Download PDF Manual
